spring&mybatis整合–DAO方式–自顶向下的方式

  • 1.新建一个Java工程
  • 2.导入jar包
  • 3.数据库准备
  • 4.创建实体
  • 5.创建增强类
  • 6.创建日志配置
  • 7.创建工具类
  • 8.配置数据源
  • 9.创建工程配置
  • 10.增加服务
  • 11.增加Dao
  • 12.服务的实现
  • 13.Dao的实现
  • 14.mapper编写
  • 15.编写测试类
  • 16.运行结果

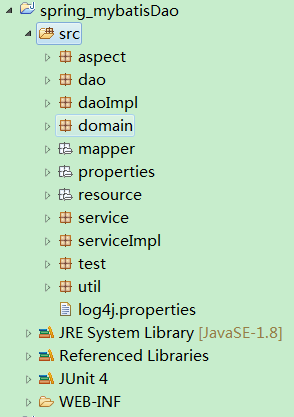

1.新建一个Java工程

在这里插入图片描述

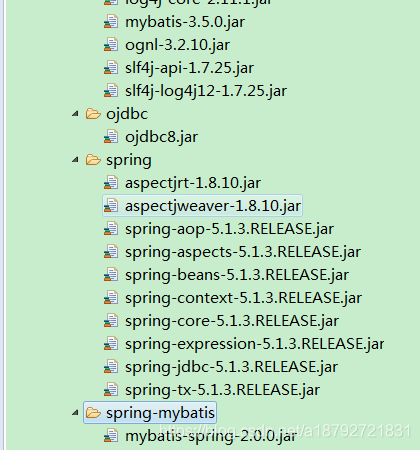

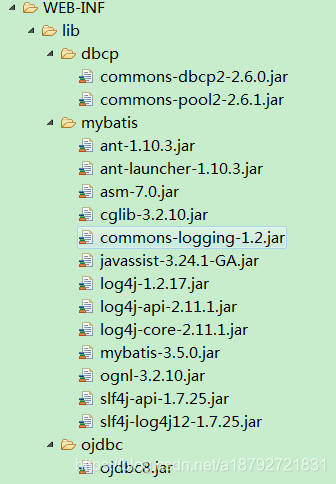

2.导入jar包

在这里插入图片描述
在这里插入图片描述

3.数据库准备

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125

-- Create table
create table PEOPLE
(
  id   NUMBER not null,
  name VARCHAR2(50) not null,
  age  NUMBER not null,
  sex  NUMBER not null
)
tablespace USERS
  pctfree 10
  initrans 1
  maxtrans 255
  storage
  (
    initial 64K
    next 1M
    minextents 1
    maxextents unlimited
  );
-- Add comments to the columns
comment on column PEOPLE.id
  is '人的id,不可为空,不可重复,主键';
comment on column PEOPLE.name
  is '人的姓名，不可为空,最大值50';
comment on column PEOPLE.age
  is '人的年龄，不可为空';
comment on column PEOPLE.sex
  is '人的性别，不可为空';
-- Create/Recreate primary, unique and foreign key constraints
alter table PEOPLE
  add constraint PEOPLE_PK primary key (ID)
  using index
  tablespace USERS
  pctfree 10
  initrans 2
  maxtrans 255
  storage
  (
    initial 64K
    next 1M
    minextents 1
    maxextents unlimited
  );
-- Create/Recreate check constraints
alter table PEOPLE
  add constraint PEOPLE_AGE
  check (age < 150 AND age > 0);
alter table PEOPLE
  add constraint PEOPLE_SEX
  check (sex IN (0,1));




-- Create table
create table SERVER
(
  id     NUMBER not null,
  name   VARCHAR2(50) not null,
  remark VARCHAR2(50)
)
tablespace USERS
  pctfree 10
  initrans 1
  maxtrans 255
  storage
  (
    initial 64K
    next 1M
    minextents 1
    maxextents unlimited
  );
-- Add comments to the table
comment on table SERVER
  is '服务表:存储所有的服务';
-- Add comments to the columns
comment on column SERVER.id
  is '服务的id,不可以为空，主键，不可重复';
comment on column SERVER.name
  is '服务的名称,不可以为空';
comment on column SERVER.remark
  is '服务的说明,可以为空';
-- Create/Recreate primary, unique and foreign key constraints
alter table SERVER
  add constraint SERVICE_PK primary key (ID)
  using index
  tablespace USERS
  pctfree 10
  initrans 2
  maxtrans 255
  storage
  (
    initial 64K
    next 1M
    minextents 1
    maxextents unlimited
  );




-- Create table
create table PEOPLE_SERVER
(
  people_id NUMBER not null,
  server_id NUMBER not null
)
tablespace USERS
  pctfree 10
  initrans 1
  maxtrans 255
  storage
  (
    initial 64K
    next 1M
    minextents 1
    maxextents unlimited
  );
-- Create/Recreate primary, unique and foreign key constraints
alter table PEOPLE_SERVER
  add constraint PEOPLE_FK foreign key (PEOPLE_ID)
  references PEOPLE (ID) on delete cascade;
alter table PEOPLE_SERVER
  add constraint SERVICE_FK foreign key (SERVER_ID)
  references SERVER (ID) on delete cascade;

4.创建实体

在这里插入图片描述

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189

package domain;

import java.io.Serializable;
import java.util.List;

import org.springframework.context.annotation.Scope;
import org.springframework.stereotype.Component;

@Component(value = "people")
@Scope("prototype")
public class People implements Serializable {

	/**
	 *
	 */
	private static final long serialVersionUID = -3270893239281340723L;

	private Long id;

	private String name;

	private Integer age;

	private Integer sex;

	private List<Server> servers;

	public List<Server> getServers() {
		return servers;
	}

	public void setServers(List<Server> servers) {
		this.servers = servers;
	}

	public Long getId() {
		return id;
	}

	public void setId(Long id) {
		this.id = id;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public Integer getAge() {
		return age;
	}

	public void setAge(Integer age) {
		this.age = age;
	}

	public Integer getSex() {
		return sex;
	}

	public void setSex(Integer sex) {
		this.sex = sex;
	}

	@Override
	public String toString() {
		return "people [id=" + this.id + ",name=" + this.name + ",age="
				+ this.age + ",sex=" + this.sex + ",server=" + this.servers
				+ "]";
	}

}




package domain;

import java.io.Serializable;

import org.springframework.context.annotation.Scope;
import org.springframework.stereotype.Component;

@Component(value = "peopleServer")
@Scope("prototype")
public class PeopleServer implements Serializable {

	/**
	 *
	 */
	private static final long serialVersionUID = 7074684736563312938L;

	private Long people_fk;

	private Long server_fk;

	public Long getPeople_fk() {
		return people_fk;
	}

	public void setPeople_fk(Long people_fk) {
		this.people_fk = people_fk;
	}

	public Long getServer_fk() {
		return server_fk;
	}

	public void setServer_fk(Long server_fk) {
		this.server_fk = server_fk;
	}

	@Override
	public String toString() {
		return "[people_id="+this.people_fk+",server_id="+this.server_fk+"]";
	}

}




package domain;

import java.io.Serializable;
import java.util.List;

import org.springframework.context.annotation.Scope;
import org.springframework.stereotype.Component;

@Component(value = "server")
@Scope("prototype")
public class Server implements Serializable {

	/**
	 *
	 */
	private static final long serialVersionUID = 6140189429513974999L;

	private Long id;

	private String name;

	private String remark;

	private List<People> peoples;

	public List<People> getPeoples() {
		return peoples;
	}

	public void setPeoples(List<People> peoples) {
		this.peoples = peoples;
	}

	public Long getId() {
		return id;
	}

	public void setId(Long id) {
		this.id = id;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public String getRemark() {
		return remark;
	}

	public void setRemark(String remark) {
		this.remark = remark;
	}

	@Override
	public String toString() {
		return "[id=" + this.id + ",name=" + this.name + ",remark="
				+ this.remark + ",peoples=" + this.peoples + "]";
	}

}

5.创建增强类

在这里插入图片描述

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

package aspect;

import java.text.SimpleDateFormat;
import java.util.Date;

import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.annotation.AfterReturning;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.aspectj.lang.annotation.Pointcut;
import org.springframework.stereotype.Component;

@Aspect
@Component("myAspect")
public class MyAspect {

	@Pointcut("execution(* dao.*+.*(..))")
	public void pointCutDao(){}

	@Pointcut("execution(* service.*+.*(..))")
	public void pointCutService(){}

	@Pointcut("execution(* service.*+.*(..))")
	public void pointCutTransaction(){}

	@Before("pointCutDao()")
	public void beforeDao(JoinPoint joinPoint){
		System.out.println("Dao     Info  "+showTime() + "[" + joinPoint.getSignature().getName()+ "]    before");
	}

	@Before("pointCutService()")
	public void beforeService(JoinPoint joinPoint){
		System.out.println("Service Info  "+showTime() + "[" + joinPoint.getSignature().getName()+ "]    before");
	}

	@Before("pointCutTransaction()")
	public void beforeTransaction(JoinPoint joinPoint){
		System.out.println("Transaction Info  "+showTime() + "[" + joinPoint.getSignature().getName()+ "]    before");
	}

	@AfterReturning("pointCutDao()")
	public void afterReturnDao(JoinPoint joinPoint){
		System.out.println("Dao     Info  "+showTime() + "[" + joinPoint.getSignature().getName()+ "]    afterReturn");
	}

	@AfterReturning("pointCutService()")
	public void afterReturnService(JoinPoint joinPoint){
		System.out.println("Service Info  "+showTime() + "[" + joinPoint.getSignature().getName()+ "]    afterReturn");
	}

	@AfterReturning("pointCutTransaction()")
	public void afterReturnTransaction(JoinPoint joinPoint){
		System.out.println("Transaction Info  "+showTime() + "[" + joinPoint.getSignature().getName()+ "]    afterReturn");
	}

	private String showTime(){
		return "  "+new SimpleDateFormat("yyyy-mm-dd HH:mm:ss,s").format(new Date())+"  ";
	}
}

6.创建日志配置

在这里插入图片描述

1
2
3
4
5
6
7
8

# Global logging configuration
log4j.rootLogger=DEBUG, stdout
# MyBatis logging configuration...
log4j.logger=DEBUG
# Console output...
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n

7.创建工具类

在这里插入图片描述

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

package util;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class MyApplicationFactory {

	private static final ApplicationContext applicationContext = new ClassPathXmlApplicationContext(
			"resource/*.xml");

	//使用泛型
	public static <T> T getBean(Class<T> clazz){
		return applicationContext.getBean(clazz);
	}

	public static ApplicationContext getApplicationContext(){
		return applicationContext;
	}
}

8.配置数据源

在这里插入图片描述

1
2
3
4
5
6
7
8
9
10

ojdbc.driver=oracle.jdbc.driver.OracleDriver
ojdbc.url=jdbc:oracle:thin:@127.0.0.1:1521:oracle
ojdbc.username=study
ojdbc.password=study
#最大连接数
ojdbc.maxTotal=30
#最大空闲连接数
ojdbc.maxIdle=10
#初始化连接数
ojdbc.initialSize=5

9.创建工程配置

在这里插入图片描述
aop.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/aop
	http://www.springframework.org/schema/aop/spring-aop.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd">
	<!-- 指定需要扫描的包 -->
	<context:component-scan base-package="domain,aspect,daoImpl,serviceImpl,util,test">
	</context:component-scan>
	<!-- 启动基于注解的声明式AspectJ支持 -->
	<aop:aspectj-autoproxy></aop:aspectj-autoproxy>
</beans>

beanx.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/aop
	http://www.springframework.org/schema/aop/spring-aop.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd">
	<!-- 开启注解注入的装配方式 -->
	<context:annotation-config></context:annotation-config>
</beans>

dataBase.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd">
	<!--  加载配置文件 -->
	<context:property-placeholder location="classpath:properties/ojdbc.properties"/>
	<!-- 配置数据源 -->
	<bean id="dataSource"
		class="org.apache.commons.dbcp2.BasicDataSource">
		<!-- 数据库驱动 -->
		<property name="driverClassName">
			<value>${ojdbc.driver}</value>
		</property>
		<!-- 连接数据库的url -->
		<property name="url">
			<value>${ojdbc.url}</value>
		</property>
		<property name="username">
			<value>${ojdbc.username}</value>
		</property>
		<property name="password">
			<value>${ojdbc.password}</value>
		</property>
		<property name="maxTotal">
			<value>${ojdbc.maxTotal}</value>
		</property>
		<property name="maxIdle">
			<value>${ojdbc.maxIdle}</value>
		</property>
		<property name="initialSize">
			<value>${ojdbc.initialSize}</value>
		</property>
	</bean>
	<!-- 配置MyBatis工厂 -->
	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource" ref="dataSource"></property>
		<property name="configLocation">
			<value>classpath:resource/mybatis.xml</value>
		</property>
	</bean>
</beans>

mybatis.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
  <settings>
   	<!-- 延迟加载全局 -->
  	<setting name="lazyLoadingEnabled" value="true"/>
  	<!-- 关联对象属性的延迟加载 -->
  	<setting name="aggressiveLazyLoading" value="false"/>
  </settings>
  <!-- 改变运行时行为 -->
  <typeAliases>
	  <!-- 配置别名 -->
	  <package name="domain"/>
  </typeAliases>
  <mappers>

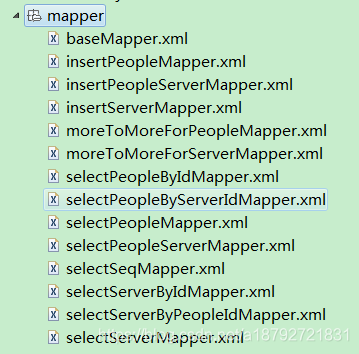

  	<mapper resource="mapper/baseMapper.xml"/>
  	<mapper resource="mapper/insertPeopleMapper.xml"/>
  	<mapper resource="mapper/selectPeopleMapper.xml"/>
  	<mapper resource="mapper/insertServerMapper.xml"/>
  	<mapper resource="mapper/selectServerMapper.xml"/>
  	<mapper resource="mapper/insertPeopleServerMapper.xml"/>
  	<mapper resource="mapper/selectPeopleServerMapper.xml"/>
  	<mapper resource="mapper/selectPeopleByIdMapper.xml"/>
  	<mapper resource="mapper/selectServerByIdMapper.xml"/>
  	<mapper resource="mapper/selectServerByPeopleIdMapper.xml"/>
  	<mapper resource="mapper/selectPeopleByServerIdMapper.xml"/>
  	<mapper resource="mapper/moreToMoreForPeopleMapper.xml"/>
  	<mapper resource="mapper/moreToMoreForServerMapper.xml"/>
  	<mapper resource="mapper/selectSeqMapper.xml"/>
  </mappers>
</configuration>

transaction.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/aop
	http://www.springframework.org/schema/aop/spring-aop.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd
	http://www.springframework.org/schema/tx
	http://www.springframework.org/schema/tx/spring-tx.xsd
	">
	<!-- 注册事物管理器，依赖于数据源的一个bean -->
	<bean id="transactionManager"
		class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource"></property>
	</bean>
	<!-- 开启注解扫描 -->
	<tx:annotation-driven transaction-manager="transactionManager" />
	<!-- 编写通知 -->
	<tx:advice id="txAdvice" transaction-manager="transactionManager">
		<tx:attributes >
			<tx:method name="*" propagation="REQUIRED" isolation="DEFAULT" read-only="false"/>
		</tx:attributes>
	</tx:advice>
</beans>

10.增加服务

在这里插入图片描述

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

package service;

import java.util.List;

import domain.People;
import domain.Server;

public interface PeopleServerService {

	void insert(People people,Server server);

	List<People> selectPeople(People people);

	List<Server> selectServer(Server server);

}

11.增加Dao

在这里插入图片描述

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73

package dao;

import java.util.List;

import domain.People;


public interface PeopleDao {

	int insertPeople(People people);

	List<People> selectPeople(People people);

	People selectPeopleById(Long peopleId);

	List<People> selectPeopleByServerId(Long serverId);

	List<People> selectPeopleWithServer(People people);

}




package dao;

import java.util.List;

import domain.PeopleServer;

public interface PeopleServerDao {

	int insertPeopleServer(PeopleServer peopleServer);

	List<PeopleServer> selelctPeopleServer(PeopleServer peopleServer);

}




package dao;

public interface SeqForPeopleServerDao {

	Long getPeopleSeq();

	Long getServerSeq();

}




package dao;

import java.util.List;

import domain.Server;

public interface ServerDao {

	int insertServer(Server server);

	List<Server> selectServer(Server server);

	Server selectServerById(Long serverId);

	List<Server> selectServerByPeopleId(Long peopleId);

	List<Server> selectServerWithPeople(Server server);

}

12.服务的实现

在这里插入图片描述

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104

package serviceImpl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.util.Assert;

import service.PeopleServerService;
import util.MyApplicationFactory;
import dao.PeopleDao;
import dao.PeopleServerDao;
import dao.SeqForPeopleServerDao;
import dao.ServerDao;
import domain.People;
import domain.PeopleServer;
import domain.Server;

@Service("peopleServerServer")
public class PeopleServerServiceImpl implements PeopleServerService{

	@Autowired
	private PeopleDao peopleDao;

	@Autowired
	private ServerDao serverDao;

	@Autowired
	private PeopleServerDao peopleServerDao;

	@Autowired
	private SeqForPeopleServerDao seqForPeopleServerDao;

	@Transactional
	@Override
	public void insert(People people, Server server) {
		Assert.notNull(people, "people.is.null");
		Assert.notNull(server, "server.is.null");
		if(people.getId() == null){
			people.setId(seqForPeopleServerDao.getPeopleSeq());
			if(peopleDao.insertPeople(people) != 1){
				//抛出异常希望事务回滚
				throw new RuntimeException("insert.people.exception");
			}
		}
		if(server.getId() == null){
			server.setId(seqForPeopleServerDao.getServerSeq());
			if(serverDao.insertServer(server) != 1){
				throw new RuntimeException("insert.server.exception");
			}
		}
		PeopleServer peopleServer = MyApplicationFactory
				.getBean(PeopleServer.class);
		peopleServer.setPeople_fk(people.getId());
		peopleServer.setServer_fk(server.getId());
		if(peopleServerDao.insertPeopleServer(peopleServer) != 1){
			throw new RuntimeException("insert.people.server.exception");
		}
	}

	@Override
	public List<People> selectPeople(People people) {
		return peopleDao.selectPeopleWithServer(people);
	}

	@Override
	public List<Server> selectServer(Server server) {
		return serverDao.selectServerWithPeople(server);
	}

	public PeopleDao getPeopleDao() {
		return peopleDao;
	}

	public void setPeopleDao(PeopleDao peopleDao) {
		this.peopleDao = peopleDao;
	}

	public ServerDao getServerDao() {
		return serverDao;
	}

	public void setServerDao(ServerDao serverDao) {
		this.serverDao = serverDao;
	}

	public PeopleServerDao getPeopleServerDao() {
		return peopleServerDao;
	}

	public void setPeopleServerDao(PeopleServerDao peopleServerDao) {
		this.peopleServerDao = peopleServerDao;
	}

	public SeqForPeopleServerDao getSeqForPeopleServerDao() {
		return seqForPeopleServerDao;
	}

	public void setSeqForPeopleServerDao(SeqForPeopleServerDao seqForPeopleServerDao) {
		this.seqForPeopleServerDao = seqForPeopleServerDao;
	}

}

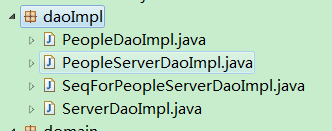

13.Dao的实现

在这里插入图片描述

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198

package daoImpl;

import java.util.List;

import org.apache.ibatis.session.SqlSessionFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;

import dao.PeopleDao;
import domain.People;

@Repository("peopleDao")
public class PeopleDaoImpl implements PeopleDao{

	@Autowired
	private SqlSessionFactory sqlSessionFactory;

	@Override
	public int insertPeople(People people) {
		return this.sqlSessionFactory.openSession().insert(
				"insertPeopleMapper.insertPeople", people);
	}

	@Override
	public List<People> selectPeople(People people) {
		return this.sqlSessionFactory.openSession().selectList(
				"selectPeopleMapper.selectPeople", people);
	}

	@Override
	public People selectPeopleById(Long peopleId) {
		return this.sqlSessionFactory.openSession().selectOne(
				"peopleMapper.selectById", peopleId);
	}

	@Override
	public List<People> selectPeopleByServerId(Long serverId) {
		return this.sqlSessionFactory.openSession().selectList(
				"selectPeopleByServerIdMapper.selectById", serverId);
	}

	@Override
	public List<People> selectPeopleWithServer(People people) {
		return this.sqlSessionFactory.openSession().selectList(
				"moreToMoreForPeopleMapper.selectPeopleWithServer", people);
	}

	public SqlSessionFactory getSqlSessionFactory() {
		return sqlSessionFactory;
	}

	public void setSqlSessionFactory(SqlSessionFactory sqlSessionFactory) {
		this.sqlSessionFactory = sqlSessionFactory;
	}

}




package daoImpl;

import java.util.List;

import org.apache.ibatis.session.SqlSessionFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;

import dao.PeopleServerDao;
import domain.PeopleServer;

@Repository("peopleServerDao")
public class PeopleServerDaoImpl implements PeopleServerDao{

	@Autowired
	private SqlSessionFactory sqlSessionFactory;

	@Override
	public int insertPeopleServer(PeopleServer peopleServer) {
		return this.sqlSessionFactory.openSession().insert(
				"insertPeopleServerMapper.insertPeopleServerOne",
				peopleServer);
	}

	@Override
	public List<PeopleServer> selelctPeopleServer(PeopleServer peopleServer) {
		return this.sqlSessionFactory.openSession().selectList(
				"selectPeopleServerMapper.selectPeopleServer", peopleServer);
	}

	public SqlSessionFactory getSqlSessionFactory() {
		return sqlSessionFactory;
	}

	public void setSqlSessionFactory(SqlSessionFactory sqlSessionFactory) {
		this.sqlSessionFactory = sqlSessionFactory;
	}

}




package daoImpl;

import org.apache.ibatis.session.SqlSessionFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;

import dao.SeqForPeopleServerDao;

@Repository("peopleServerSeq")
public class SeqForPeopleServerDaoImpl implements SeqForPeopleServerDao{

	@Autowired
	private SqlSessionFactory sqlSessionFactory;

	@Override
	public Long getPeopleSeq() {
		return this.sqlSessionFactory.openSession().selectOne(
				"selectSeqMapper.selectPeopleSeq");
	}

	@Override
	public Long getServerSeq() {
		return this.sqlSessionFactory.openSession().selectOne(
				"selectSeqMapper.selectServerSeq");
	}

	public SqlSessionFactory getSqlSessionFactory() {
		return sqlSessionFactory;
	}

	public void setSqlSessionFactory(SqlSessionFactory sqlSessionFactory) {
		this.sqlSessionFactory = sqlSessionFactory;
	}

}




package daoImpl;

import java.util.List;

import org.apache.ibatis.session.SqlSessionFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;

import dao.ServerDao;
import domain.Server;

@Repository("serverDao")
public class ServerDaoImpl implements ServerDao{

	@Autowired
	private SqlSessionFactory sqlSessionFactory;

	@Override
	public int insertServer(Server server) {
		return this.sqlSessionFactory.openSession().insert(
				"insertServerMapper.insertServer", server);
	}

	@Override
	public List<Server> selectServer(Server server) {
		return this.sqlSessionFactory.openSession().selectList(
				"selectServerMapper.selectServer", server);
	}

	@Override
	public Server selectServerById(Long serverId) {
		return this.sqlSessionFactory.openSession().selectOne(
				"serverMapper.selectById", serverId);
	}

	@Override
	public List<Server> selectServerByPeopleId(Long peopleId) {
		return this.sqlSessionFactory.openSession().selectList(
				"selectServerByPeopleIdMapper.selectById", peopleId);
	}

	@Override
	public List<Server> selectServerWithPeople(Server server) {
		return this.sqlSessionFactory.openSession().selectList(
				"moreToMoreForServerMapper.selectServerWithPeople", server);
	}

	public SqlSessionFactory getSqlSessionFactory() {
		return sqlSessionFactory;
	}

	public void setSqlSessionFactory(SqlSessionFactory sqlSessionFactory) {
		this.sqlSessionFactory = sqlSessionFactory;
	}

}

14.mapper编写

在这里插入图片描述
baseMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="baseMapper">
	<sql id="str_select_people">
		p.id,p.name,p.age,p.sex
	</sql>
	<sql id="str_table_people">
		people p
	</sql>
	<sql id="str_select_server">
		s.id,s.name,s.remark
	</sql>
	<sql id="str_table_server">
		server s
	</sql>
	<sql id="str_select_people_server">
		ps.people_id as people_fk,ps.server_id as server_fk
	</sql>
	<sql id="str_table_people_server">
		people_server ps
	</sql>
</mapper>

insertPeopleMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="insertPeopleMapper">
	<insert id="insertPeople" parameterType="people">
		insert into
		<include refid="baseMapper.str_table_people"></include>
		(<include refid="baseMapper.str_select_people"></include>)
		values(#{id},#{name},#{age},#{sex})
	</insert>
</mapper>

insertPeopleServerMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="insertPeopleServerMapper">
	<insert id="insertPeopleServer" parameterType="peopleServer">
		insert into
		<include refid="baseMapper.str_table_people_server"></include>
		(<include refid="baseMapper.str_select_people_server"></include>)
		values(#{people_fk},#{server_fk})
	</insert>
	<insert id="insertPeopleServerOne" parameterType="peopleServer">
		insert into
		<include refid="baseMapper.str_table_people_server"></include>
		(PS.PEOPLE_ID, PS.SERVER_ID)
		values(#{people_fk},#{server_fk})
	</insert>
</mapper>

insertServerMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="insertServerMapper">
	<insert id="insertServer" parameterType="server">
		insert into
		<include refid="baseMapper.str_table_server"></include>
		(<include refid="baseMapper.str_select_server"></include>)
		values(#{id},#{name},#{remark})
	</insert>
</mapper>

moreToMoreForPeopleMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="moreToMoreForPeopleMapper">
	<resultMap type="people" id="resultWithServer">
		<id property="id" column="id"/>
		<result property="name" column="name"/>
		<result property="age" column="age"/>
		<result property="sex" column="sex"/>
		<collection property="servers" ofType="server" column="id"
	select="selectServerByPeopleIdMapper.selectById"></collection>
	</resultMap>
	<select id="selectPeopleWithServer" parameterType="people" resultMap="resultWithServer">
		select <include refid="baseMapper.str_select_people"></include>
		from <include refid="baseMapper.str_table_people"></include>
		<where>
			<if test="id != null and id != ''">
		  	 	and p.id=#{id}
		  	 </if>
		  	 <if test="name != null and name != ''">
		  	 	and p.name=#{name}
		  	 </if>
		  	 <if test="age != null and age != ''">
		  	 	and p.age=#{age}
		  	 </if>
		  	 <if test="sex != null and sex != ''">
		  	 	and p.sex=#{sex}
		  	 </if>
		</where>
	</select>

	<!-- 结果方式 -->
	<resultMap type="people" id="resultPeopleWithServer">
		<id property="id" column="pid"/>
		<result property="name" column="pname"/>
		<result property="age" column="page"/>
		<result property="sex" column="psex"/>
		<collection property="servers" ofType="server">
			<id property="id" column="sid"/>
			<result property="name" column="sname"/>
			<result property="remark" column="sremark"/>
		</collection>
	</resultMap>
	<select id="selectPeopleWithServerResult" parameterType="people" resultMap="resultPeopleWithServer">
		select p.id as pid,p.name as pname,p.age as page,p.sex as psex,
		s.id as sid,s.name as sname,s.remark as sremark
		from <include refid="baseMapper.str_table_people"></include>,
		<include refid="baseMapper.str_table_server"></include>,
		<include refid="baseMapper.str_table_people_server"></include>
		<where>
			and p.id=ps.people_id
			and s.id=ps.server_id
			<if test="id != null and id != ''">
		  	 	and p.id=#{id}
		  	 </if>
		  	 <if test="name != null and name != ''">
		  	 	and p.name=#{name}
		  	 </if>
		  	 <if test="age != null and age != ''">
		  	 	and p.age=#{age}
		  	 </if>
		  	 <if test="sex != null and sex != ''">
		  	 	and p.sex=#{sex}
		  	 </if>
		</where>
	</select>
</mapper>

moreToMoreForServerMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="moreToMoreForServerMapper">
	<resultMap type="server" id="resultWithPeople">
		<id property="id" column="id"/>
		<result property="name" column="name"/>
		<result property="remark" column="remark"/>
		<collection property="peoples" ofType="people" column="id"
	select="selectPeopleByServerIdMapper.selectById"></collection>
	</resultMap>
	<select id="selectServerWithPeople" parameterType="server" resultMap="resultWithPeople">
		select <include refid="baseMapper.str_select_server"></include>
		from <include refid="baseMapper.str_table_server"></include>
		<where>
			<if test="id != null and id != ''">
		  	 	and s.id=#{id}
		  	 </if>
		  	 <if test="name != null and name != ''">
		  	 	and s.name=#{name}
		  	 </if>
		  	 <if test="remark != null and remark != ''">
		  	 	and s.remark=#{remark}
		  	 </if>
		</where>
	</select>

	<!-- 结果方式 -->
	<resultMap type="server" id="resultServerWithPeople">
		<id property="id" column="sid"/>
		<result property="name" column="sname"/>
		<result property="remark" column="sremark"/>
		<collection property="peoples" ofType="people">
			<id property="id" column="pid"/>
			<result property="name" column="pname"/>
			<result property="age" column="page"/>
			<result property="sex" column="psex"/>
		</collection>
	</resultMap>
	<select id="selectServerWithPeopleResult" parameterType="server" resultMap="resultServerWithPeople">
		select p.id as pid,p.name as pname,p.age as page,p.sex as psex,
		s.id as sid,s.name as sname,s.remark as sremark
		from <include refid="baseMapper.str_table_people"></include>,
		<include refid="baseMapper.str_table_server"></include>,
		<include refid="baseMapper.str_table_people_server"></include>
		<where>
			and p.id=ps.people_id
			and s.id=ps.server_id
			<if test="id != null and id != ''">
		  	 	and s.id=#{id}
		  	 </if>
		  	 <if test="name != null and name != ''">
		  	 	and s.name=#{name}
		  	 </if>
		  	 <if test="remark != null and remark != ''">
		  	 	and s.remark=#{remark}
		  	 </if>
		</where>
	</select>
</mapper>

selectPeopleByIdMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="peopleMapper">
	<select id="selectById" parameterType="Long" resultType="people">
		select <include refid="baseMapper.str_select_people"></include>
		from <include refid="baseMapper.str_table_people"></include>
		<where>
			<if test="_parameter != null and _parameter != ''">
				and id=#{_parameter}
			</if>
		</where>
	</select>
</mapper>

selectPeopleByServerIdMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="selectPeopleByServerIdMapper">
	<select id="selectById" parameterType="Long" resultType="people">
		select <include refid="baseMapper.str_select_people"></include>
		from <include refid="baseMapper.str_table_people"></include>
		,<include refid="baseMapper.str_table_people_server"></include>
		<where>
			p.id = ps.people_id
			<if test="_parameter != null and _parameter != ''">
				and ps.server_id=#{_parameter}
			</if>
		</where>
	</select>
</mapper>

selectPeopleMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="selectPeopleMapper">
	<select id="selectPeople" parameterType="people" resultType="people">
		select
		<include refid="baseMapper.str_select_people"></include>
		from
		<include refid="baseMapper.str_table_people"></include>
		<where>
			<if test="id != null and id != ''">
		  	 	and id=#{id}
		  	 </if>
		  	 <if test="name != null and name != ''">
		  	 	and name=#{name}
		  	 </if>
		  	 <if test="age != null and age != ''">
		  	 	and age=#{age}
		  	 </if>
		  	 <if test="sex != null and sex != ''">
		  	 	and sex=#{sex}
		  	 </if>
		</where>
	</select>
</mapper>

selectPeopleServerMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="selectPeopleServerMapper">
	<select id="selectPeopleServer" parameterType="peopleServer" resultType="peopleServer">
		select
		<include refid="baseMapper.str_select_people_server"></include>
		from
		<include refid="baseMapper.str_table_people_server"></include>
		<where>
			<if test="people_fk != null and people_fk != ''">
		  	 	and people_id=#{people_fk}
		  	 </if>
		  	 <if test="server_fk != null and server_fk != ''">
		  	 	and server_id=#{server_fk}
		  	 </if>
		</where>
	</select>
</mapper>

selectSeqMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="selectSeqMapper">
	<select id="selectPeopleSeq" resultType="Long">
		SELECT SEQ_PEOPLE.NEXTVAL FROM DUAL
	</select>
	<select id="selectServerSeq" resultType="Long">
		SELECT SEQ_SERVER.NEXTVAL FROM DUAL
	</select>
</mapper>

selectServerByIdMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="serverMapper">
	<select id="selectById" parameterType="Long" resultType="server">
		select <include refid="baseMapper.str_select_server"></include>
		from <include refid="baseMapper.str_table_server"></include>
		<where>
			<if test="_parameter != null and _parameter != ''">
				and id=#{_parameter}
			</if>
		</where>
	</select>
</mapper>

selectServerByPeopleIdMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="selectServerByPeopleIdMapper">
	<select id="selectById" parameterType="Long" resultType="server">
		select <include refid="baseMapper.str_select_server"></include>
		from <include refid="baseMapper.str_table_server"></include>
		,<include refid="baseMapper.str_table_people_server"></include>
		<where>
			s.id = ps.server_id
			<if test="_parameter != null and _parameter != ''">
				and ps.people_id=#{_parameter}
			</if>
		</where>
	</select>
</mapper>

selectServerMapper.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="selectServerMapper">
	<select id="selectServer" parameterType="server" resultType="server">
		select
		<include refid="baseMapper.str_select_server"></include>
		from
		<include refid="baseMapper.str_table_server"></include>
		<where>
			<if test="id != null and id != ''">
		  	 	and id=#{id}
		  	 </if>
		  	 <if test="name != null and name != ''">
		  	 	and name=#{name}
		  	 </if>
		  	 <if test="remark != null and remark != ''">
		  	 	and remark=#{remark}
		  	 </if>
		</where>
	</select>
</mapper>

15.编写测试类

在这里插入图片描述

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74

package test;

import org.apache.commons.dbcp2.BasicDataSource;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.junit.Test;

import service.PeopleServerService;
import util.MyApplicationFactory;
import domain.People;
import domain.PeopleServer;
import domain.Server;

public class Main {

	@Test
	public void testInsert(){
		//增加一个20190309的people和20190309的server以及之间的关系
		People people = MyApplicationFactory.getBean(People.class);
		people.setName("20190309");
		people.setAge(22);
		people.setSex(1);
		Server server = MyApplicationFactory.getBean(Server.class);
		server.setName("20190309");
		server.setRemark("testInsertSpringMybatis");
		PeopleServerService peopleServerService = MyApplicationFactory
				.getBean(PeopleServerService.class);
		peopleServerService.insert(people, server);
	}

	@Test
	public void selectPeople(){
		People people = MyApplicationFactory.getBean(People.class);
		people.setName("20190309");
		PeopleServerService peopleServerService = MyApplicationFactory
				.getBean(PeopleServerService.class);
		peopleServerService.selectPeople(people).forEach(
				p -> System.out.println(p));
	}

	@Test
	public void selectServer(){
		Server server = MyApplicationFactory.getBean(Server.class);
		server.setName("20190309");
		PeopleServerService peopleServerService = MyApplicationFactory
				.getBean(PeopleServerService.class);
		peopleServerService.selectServer(server).forEach(
				p -> System.out.println(p));
	}

	@Test
	public void testService(){
		MyApplicationFactory.getBean(PeopleServerService.class);
	}

	@Test
    public void setDateSource() {
		BasicDataSource dataSource = (BasicDataSource) MyApplicationFactory.getApplicationContext().getBean("dataSource");
		System.out.println(dataSource.getUsername());
    }

	@Test
	public void insertPeopleServer(){
		SqlSession sqlSession = MyApplicationFactory.getBean(SqlSessionFactory.class).openSession();
		PeopleServer peopleServer = MyApplicationFactory.getBean(PeopleServer.class);
		peopleServer.setPeople_fk(666L);
		peopleServer.setServer_fk(199L);
		System.out.println(sqlSession.insert("insertPeopleServerMapper.insertPeopleServerOne",peopleServer));
		sqlSession.commit();
		sqlSession.close();


	}
}

16.运行结果

testInsert

1
2
3
4
5
6
7
8
9
10
11
12
13
14

Service Info    2019-56-11 20:56:19,19  [insert]    before
Transaction Info    2019-56-11 20:56:19,19  [insert]    before
Dao     Info    2019-56-11 20:56:19,19  [getPeopleSeq]    before
Dao     Info    2019-56-11 20:56:19,19  [getPeopleSeq]    afterReturn
Dao     Info    2019-56-11 20:56:19,19  [insertPeople]    before
Dao     Info    2019-56-11 20:56:19,19  [insertPeople]    afterReturn
Dao     Info    2019-56-11 20:56:19,19  [getServerSeq]    before
Dao     Info    2019-56-11 20:56:19,19  [getServerSeq]    afterReturn
Dao     Info    2019-56-11 20:56:19,19  [insertServer]    before
Dao     Info    2019-56-11 20:56:19,19  [insertServer]    afterReturn
Dao     Info    2019-56-11 20:56:19,19  [insertPeopleServer]    before
Dao     Info    2019-56-11 20:56:19,19  [insertPeopleServer]    afterReturn
Service Info    2019-56-11 20:56:19,19  [insert]    afterReturn
Transaction Info    2019-56-11 20:56:19,19  [insert]    afterReturn

selectPeople

1
2
3
4
5
6
7
8
9

Service Info    2019-56-11 20:56:36,36  [selectPeople]    before
Transaction Info    2019-56-11 20:56:36,36  [selectPeople]    before
Dao     Info    2019-56-11 20:56:36,36  [selectPeopleWithServer]    before
Dao     Info    2019-56-11 20:56:37,37  [selectPeopleWithServer]    afterReturn
Service Info    2019-56-11 20:56:37,37  [selectPeople]    afterReturn
Transaction Info    2019-56-11 20:56:37,37  [selectPeople]    afterReturn
people [id=674,name=20190309,age=22,sex=1,server=[[id=206,name=20190309,remark=testInsertSpringMybatis,peoples=null]]]
people [id=677,name=20190309,age=22,sex=1,server=[[id=207,name=20190309,remark=testInsertSpringMybatis,peoples=null]]]
people [id=682,name=20190309,age=22,sex=1,server=[[id=208,name=20190309,remark=testInsertSpringMybatis,peoples=null]]]

selectServer

1
2
3
4
5
6
7
8
9

Service Info    2019-56-11 20:56:52,52  [selectServer]    before
Transaction Info    2019-56-11 20:56:52,52  [selectServer]    before
Dao     Info    2019-56-11 20:56:52,52  [selectServerWithPeople]    before
Dao     Info    2019-56-11 20:56:53,53  [selectServerWithPeople]    afterReturn
Service Info    2019-56-11 20:56:53,53  [selectServer]    afterReturn
Transaction Info    2019-56-11 20:56:53,53  [selectServer]    afterReturn
[id=206,name=20190309,remark=testInsertSpringMybatis,peoples=[people [id=674,name=20190309,age=22,sex=1,server=null]]]
[id=207,name=20190309,remark=testInsertSpringMybatis,peoples=[people [id=677,name=20190309,age=22,sex=1,server=null]]]
[id=208,name=20190309,remark=testInsertSpringMybatis,peoples=[people [id=682,name=20190309,age=22,sex=1,server=null]]]

insertPeopleServer

1

1
spring&amp;mybatis整合, spring&amp;mybatis传统开发方式整合, spring&amp;mybatis整合自定向下开发, 完整的spring&amp;mybatis项目, 一步步教你学会spring&amp;mybatis
本文由作者按照 CC BY 4.0 进行授权
